Heating, plumbing, air conditioning and ventilation applications


  • Available in 4.5” (115mm) or 6” (150mm) scales
  • Brass socket 1/2” NPT is standard (stainless steel optional)

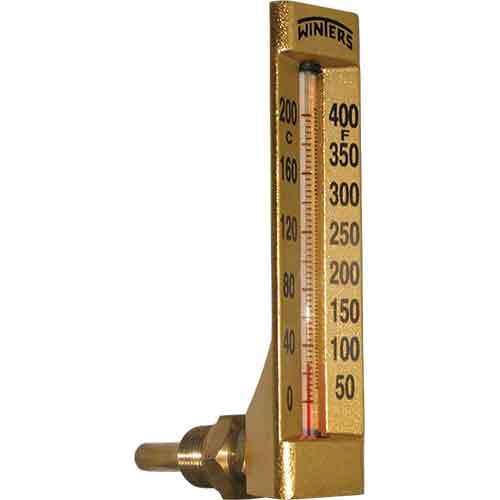

  • Available in either a straight model (bottom connection) or 90° angle model (back connection)
  • ASME B40.200 and ASTM E2511 compliant
  • 5 year warranty
Scale Aluminum, black markings
Case 4.5” (110 mm), 6” (150 mm) aluminum, anodized gold
Tube Glass cushioned
Liquid Filling Organic liquid (red)
Stem Brass (SS optional)
Connection 1/2” NPT (1/2” BSP optional)
Swivel Nut Brass (SS optional; swivel and stem one unit)
Ambient/Process Temperature -40°F to 400°F (-40°C to 204°C)
Operating Temperature Maximum 80% of full scale value recommended
Accuracy ±2% of full scale
Enclosure Rating IP65
