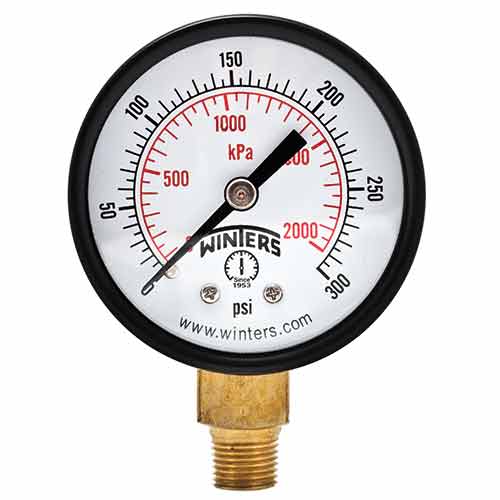

ECONOMY PRESSURE GAUGE

APPLICATIONS:

Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM

DESCRIPTION & FEATURES:

  • Most economical, all-purpose pressure gauge
  • 1.5” (40mm) to 4” (100mm) sizes
  • Friction bezel rings
  • Black steel case
  • Brass or lead free brass wetted parts
  • ASME B40.100 compliant (EN837-1 available)
  • ±3-2-3% accuracy
  • CRN registered
  • 5 year warranty

SPECIFICATIONS

Case  Steel, painted black (plastic available)
Lens 1.5” (40mm), 2” (50mm), 2.5” (63mm): Acrylic

4” (100mm): Glass
Ring 1.5” (40mm), 2” (50mm): Steel, painted black

2.5” (63mm), 4” (100mm): Steel, chrome plated
Socket PEM: Brass

PEM-LF: Lead Free Brass
Connection 1/8” NPT or 1/4” NPT standard
Bourdon Tube PEM: Phosphor bronze

PEM-LF: Lead free phosphor bronze
Movement Brass
Pointer Aluminum, black
Welding Silver alloy
Over-Pressure Limit 25% of full scale value
Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature -40°F to 150°F (-40°C to 65°C)
Accuracy ±3-2-3% ANSI/ASME Grade B
Enclosure Rating IP52
