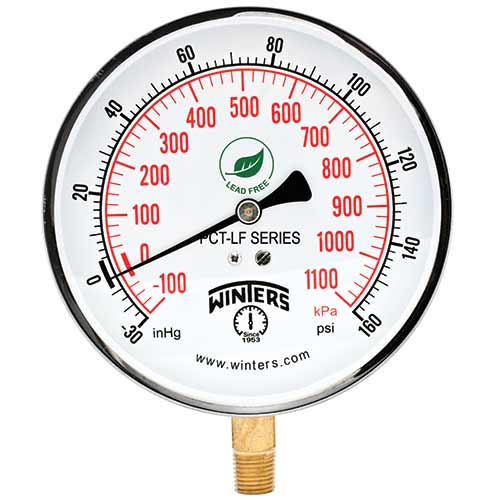

CONTRACTOR PRESSURE GAUGE

APPLICATIONS:

Most commercial air, water and steam services that require a ±1% full-scale accuracy

DESCRIPTION & FEATURES:

  • Economical 4.5” (115mm) stainless steel case gauge
  • Brass or lead free brass wetted parts
  • ±1% accuracy
  • Zero adjustment screw
  • 1/4” NPT
  • Restricted orifice
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

SPECIFICATIONS

Case 304 SS
Lens Acrylic
Ring 304 SS
Socket PCT: Brass

PCT-LF: Lead free brass
Connection 1/4” NPT standard
Bourdon Tube Phosphor bronze
Movement Brass
Pointer Aluminum, anodized black, recalibrator screw
Welding Silver solder
Over-Pressure Limit 25% for pressures up to 1,450 psi (9,998 kPa),

15% for pressures over 1,500 psi (10,342 kPa)
Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature -40°F to 200°F (-40°C to 93°C)
Accuracy ±1% ANSI/ASME Grade 1A
Enclosure Rating IP52
